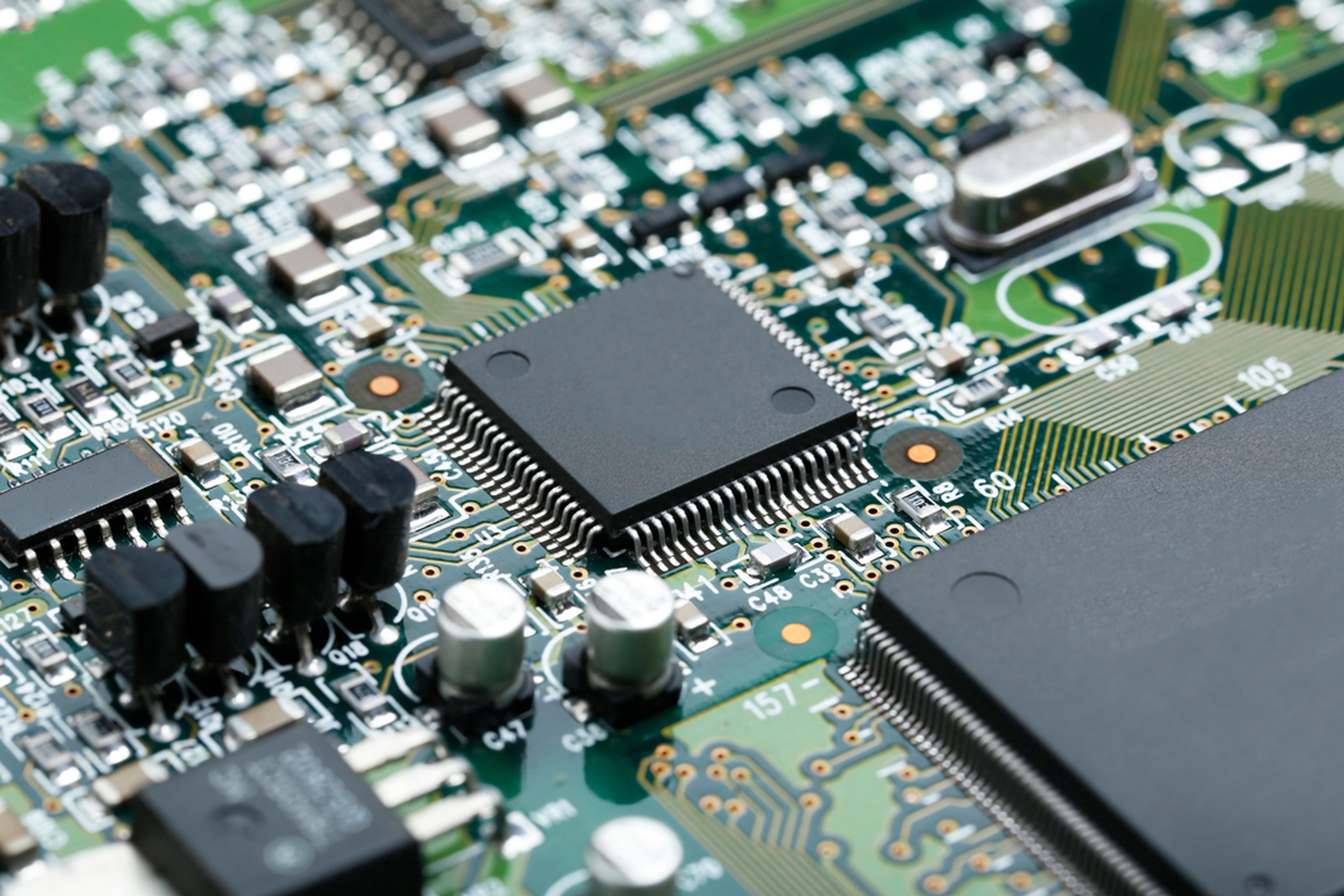

High-Density Interconnect (HDI PCB): The Key to AI Computing & Our Capabilities

Key takeaways:

• High-Density Interconnect (HDI PCB) technology uses microvias, fine traces, and advanced layer structures to support compact, high-performance electronic designs.

• HDI PCBs improve routing density, signal integrity, and component integration, making them well suited for AI computing, telecommunications, medical devices, IoT, and other advanced applications.

• HDI PCB fabrication creates the bare circuit board, while HDI PCB assembly installs and validates electronic components for reliable product performance.

• Choosing HDI technology helps support smaller form factors, higher component density, and complex multilayer circuit designs.

• Successful HDI products rely on precise assembly, inspection, testing, and manufacturing processes to ensure consistent quality and reliability.

• Flexi Versa Group helps customers bring HDI PCB-based products to production through precision HDI PCB assembly and manufacturing expertise.

Introduction

AI computing, high-speed networking, edge devices, and advanced electronics require greater processing power within increasingly compact designs. As component counts and data speeds rise, printed circuit boards must support denser routing, reliable signal transmission, and smaller form factors.

High-Density Interconnect (HDI PCB) technology addresses these requirements through fine traces, microvias, advanced layer structures, and higher interconnection density. These features make HDI PCBs an important foundation for AI hardware and other high-performance electronic products.

What Is a High-Density Interconnect (HDI PCB)?

A High-Density Interconnect (HDI PCB) is a printed circuit board with a higher wiring and component density than a conventional PCB. It uses smaller conductive features to fit more electrical connections into a limited board area.

Common HDI features include:

• Microvias

• Blind and buried vias

• Fine traces and spacing

• Via-in-pad designs

• High component density

• Advanced multilayer stack-ups

These features allow designers to place more components within a smaller footprint while supporting complex routing and high-performance circuitry.

Also read: Box Build Assembly vs PCB Assembly: Key Differences, Considerations & Our Services.

What is HDI in PCB manufacturing?

In PCB manufacturing, HDI refers to the specialised fabrication techniques used to create high-density circuit boards. These may include laser-drilled microvias, sequential lamination, fine-line routing, and advanced blind or buried via structures.

Sequential lamination builds selected board layers in stages, allowing microvias and interconnections to connect specific layers without requiring every via to pass through the entire board. This creates additional routing space for fine-pitch components and complex multilayer designs.

HDI PCB fabrication and HDI PCB assembly are separate stages. Fabrication produces the bare circuit board, while assembly places and connects electronic components onto that board.

Why Do HDI PCBs Matter in AI Computing?

AI computing systems process large amounts of data and often rely on high-pin-count processors, memory devices, power-management components, and high-speed interfaces.

HDI technology provides the routing density needed to connect these components within compact hardware designs.

Key advantages for AI computing include:

• Higher component density: More processors, memory devices, and supporting components can be placed within a smaller area.

• Compact form factors: Dense routing helps reduce board size for edge AI devices and space-constrained systems.

• Shorter interconnections: Reduced routing lengths can support signal integrity and lower signal loss in high-frequency applications.

• Fine-pitch component support: Microvias help route connections from high-pin-count packages such as ball grid arrays.

• Advanced multilayer routing: Complex power, ground, and signal networks can be distributed across multiple layers.

• High-speed performance: Carefully designed HDI stack-ups can support controlled impedance, power integrity, and electromagnetic interference management.

HDI alone does not determine an AI system’s performance. However, it provides the physical interconnection platform needed to integrate increasingly complex, high-speed components efficiently.

Related insights: Eliminating BOM and Footprint Errors in PCB Assembly.

What Is the Difference Between HDI and Non-HDI PCBs?

The main difference between HDI and non-HDI PCBs is their interconnect density and routing capability.

A non-HDI PCB typically uses standard through-hole vias and wider trace spacing, making it suitable for products with simpler layouts and lower routing requirements.

An HDI PCB uses microvias, finer traces, and advanced layer structures to support higher component density and more complex circuit designs within a smaller footprint.

HDI PCBs are commonly chosen for products that require:

• Compact board designs

• Higher component density

• Fine-pitch components

• High-speed signal routing

• Complex multilayer layouts

Non-HDI PCBs remain a practical choice for applications where space constraints and routing complexity are less demanding.

What Is Considered a High-Density PCB?

A high-density PCB provides more interconnections and component placements per unit area than a traditional circuit board. There is no single feature that defines every HDI design, but these boards commonly use several advanced characteristics together.

A PCB may be considered high density when it includes:

• Laser-drilled microvias

• Blind or buried vias

• Fine-line traces and narrow spacing

• Via-in-pad structures

• Fine-pitch or high-pin-count components

• Multiple sequentially laminated layers

• Dense component placement

• Compact board dimensions

The required density depends on the product design. A board created for an AI accelerator, medical device, or telecommunications system may require a more complex HDI stack-up than a compact consumer product.

Common Applications of HDI PCBs

HDI PCBs are used where high performance, compact size, and complex component integration are required.

Common applications include:

• AI computing hardware

• Edge computing devices

• High-performance servers

• Telecommunications and networking equipment

• Medical devices

• Internet of Things devices

• Industrial automation systems

• Automotive electronics

• Smartphones and wearable devices

• Advanced consumer electronics

The appropriate board structure depends on factors such as component density, data speed, operating environment, thermal requirements, and reliability expectations.

From HDI Board Design to Reliable Product Integration

HDI PCB-based products require more than a well-designed circuit board. They also require precise assembly, effective manufacturing coordination, rigorous inspection, and thorough testing to ensure reliable performance.

At Flexi Versa Group, we support customers through a vertically integrated manufacturing approach that includes Printed Circuit Board Assembly (PCBA), electronics manufacturing, testing, validation, and full product integration. This helps customers move from design to production with greater process control and manufacturing efficiency.

Our focus is on HDI PCB assembly, ensuring customer-specified boards are assembled, inspected, and validated to meet the required technical, quality, and production standards.

Frequently Asked Questions

Are HDI PCBs more expensive than standard PCBs?

HDI PCBs can cost more because they require specialised fabrication processes, finer features, advanced tooling, and additional lamination steps. However, their ability to reduce board size and support greater functionality may provide overall product-level benefits.

Why are microvias used in HDI PCBs?

Microvias create compact connections between selected PCB layers. Their small size provides additional routing space around fine-pitch components and supports higher interconnection density.

Can HDI PCBs improve signal integrity?

HDI designs can improve signal integrity when shorter interconnections, controlled stack-ups, and properly designed return paths are used. The result depends on the complete layout, materials, impedance control, and power-distribution design—not microvias alone.

Can a standard PCB design be converted into an HDI design?

A conventional PCB can be redesigned using HDI techniques, but the process usually requires changes to the stack-up, routing, via structures, component placement, and fabrication rules. The redesign should be reviewed with experienced PCB designers, fabricators, and assembly teams.

What industries use HDI PCBs?

HDI PCBs are widely used in AI computing, telecommunications, medical devices, automotive electronics, industrial systems, IoT products, aerospace, and advanced consumer electronics.

Does Flexi Versa Group manufacture HDI PCBs?

No. Flexi Versa Group provides HDI PCB assembly and related manufacturing support, but it does not fabricate or sell bare HDI circuit boards.

Concluding Remarks: Enabling Next-Generation Electronics with HDI PCB Assembly

The future of AI computing depends on electronic hardware that can support faster data processing, greater component density, and increasingly compact designs. HDI PCB technology provides the advanced interconnections needed to bring these requirements together.

From AI hardware and medical devices to telecommunications, IoT, and industrial systems, HDI PCBs support the development of smaller and more capable electronic products.

Precision assembly, inspection, and testing remain essential to turning these advanced boards into reliable production-ready systems.
